Regression Based Prediction

Lecture 13

Chris Slaughter

October 30, 2025

Code

library(rms)
library(ggplot2)
tryCatch(source('pander_registry.R'), error = function(e) invisible(e))

1 Overview

1.1 Uses of Regression

Cluster Analysis
- Focuses on identifying observations (covariates) with similar characteristics
  - Interest lies in finding clusters that are more (or less) likely to have some outcome of interest
- Divide a population into subgroups based on patterns of similar measurement
  - Clustering can be done by considering one variable (univariable) or multiple variables (multivariable)
  - Number of clusters can be known or unknown
- Examples
  - Microarrays
  - fMRI
  - “Small $n$, large $p$” (few subjects, many predictors)
- Statistical techniques
  - Stepwise regression
  - Regression trees
  - Other data-driven model building approaches
  - Getting valid inference (i.e. reliable p-values, unbiased parameter estimates) particularly challenging
    - Area of active research in Biostatistics
Quantifying and comparing distributions
- Compare distribution of the outcome variable across levels of the grouping variable or variables
  - Compare salary in males and females, across professors of the same rank, degree, experience, and field
  - Compare FEV in smokers and non-smokers, across teenagers of the same age and height
- Need to decide which summary measure is appropriate for describing the distribution
  - Common summary measures: Means, median, geometric mean, odds, rates, hazards
  - Other measures: Variance, skewness, kurtosis, likelihood of extreme values, quantiles, etc.
- May desire estimates within specific subgroups
  - Estimates of the association within gender, race, or age groups
  - (This is effect modification)
Regression based prediction
- Prediction of summary measures
  - Point prediction
    - Best single estimate for the measurement that would be obtained, on average, for many individuals with given covariates
  - Interval prediction
    - Quantify the uncertainty of the average
    - Range of summary measure that might be reasonable to observe
- Prediction of individual measurements
  - Point prediction
    - Best single estimate for the measurement that would be obtained on a single individual with given covariates
  - Interval prediction
    - Quantify the uncertainty of the individual prediction
    - Range of measurements that might reasonably be observed in a future individual with given covariates

1.2 Examples of Prediction

1.2.1 Continuous prediction: Creatinine clearance

Creatinine is a continuously produced breakdown product in muscles
Removed by the kidney through filtration
Amount of creatinine cleared by the kidneys in 24 hours is a measure of renal function
- Gold standard is to collect urine output for 24 hours, measure creatinine
- Would prefer to find a combination of blood and urine measures that can be obtained at one time point, yet still provides accurate prediction of a patient’s creatinine clearance
Statistical approach
- Collect a training dataset to build a regression model for prediction
  - Measure true creatinine clearance
  - Measure age, gender, weight, height, blood makers, urinary markers, etc.
  - Fit a (data driven?) regression model to predict true creatinine clearance
- Collect a validation dataset
  - Use the regression estimates (the $\beta$s) from the training dataset to see how well your model predict creatinine clearance
  - Quantify the accuracy of the predictive model (e.g. mean squared error)
  - Cross validation

1.2.2 Discrimination (binary prediction): Low birth weight

Want to predict which infants are more likely to be less than 2500 grams at birth
Possible predictors: Age, race, blood biomarkers collected during pregnancy
Statistical Approach
- Collect a training dataset to build a regression model for prediction
  - Measure birth weight
  - Measure age, race, blood biomarkers
  - Fit a (data driven?) regression model to predict low birth weight
- Collect a validation dataset
  - Use the regression estimates (the $\beta$s) from the training dataset to see how well your model predict low birth weight
  - Quantify the accuracy of the predictive model

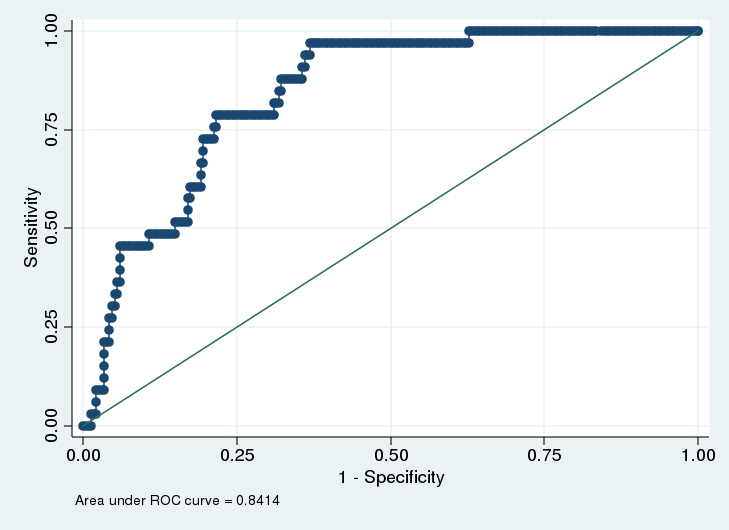

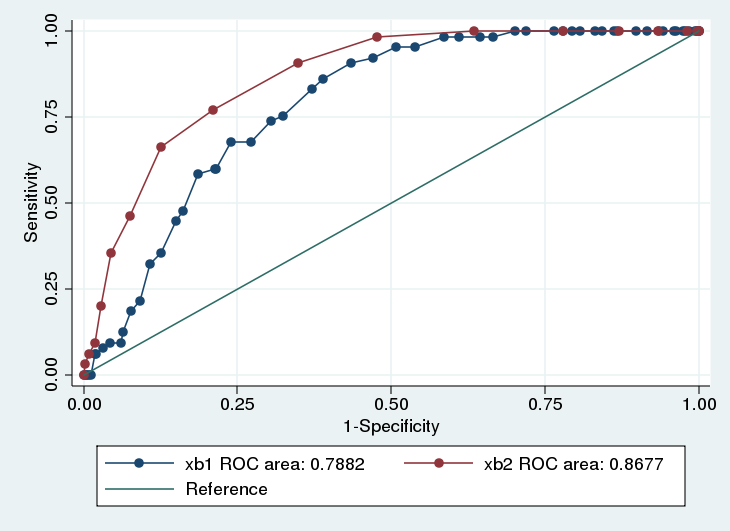

    - Sensitivity, specificity (ROC curves)
    - Predictive value positive, predictive value negative

1.2.3 Interval prediction: Normal ranges of PSA

Identify the range of PSA values that would be expected in 95% of most healthy adult males
Possibly stratify by age, race
Statistical Approach
- Collect a training dataset to build a regression model for prediction
  - Measure PSA and variable to predict PSA
  - Need to estimate the quantiles
    - Mean plus/minus 2 standard deviations (makes strong Normality assumption)
    - Estimate the quantiles, provide CIs around the quantiles (likely low precision)
- Collect a validation dataset
  - Quantify the accuracy of the predictive model (e.g. coverage probabilities)

1.3 Assumptions needed for inference

1.3.1 Inference for associations

Necessary assumptions for classical regression (no robust standard errors)
- Independence of response measurements within identified clusters
- Have appropriately modeled the within group variance
  - Linear regression: Equal variance across groups
  - Other regressions: Appropriate mean-variance relationship
    - Lack of model fit may lead to poor estimate of the variance
- Sample size is large enough so that parameter estimates approximately follow a Normal distribution
Necessary assumptions for first order trends using robust standard errors
- Independence of response measurements within identified clusters
- (Robust standard errors accounts for heteroscedasticity in large samples)
  - Lack of model fit leads to conservative inference due to mixing systematic and random error
- Sample size is large enough so that parameter estimates approximately follow a Normal distribution

1.3.2 Inference for predictions

Additional assumptions for predictions of means
- Our regression model has accurately described the relationship between summary measures across groups
- For continuous covariates, often involves flexible models that allow for departures from linearity
Additional assumptions for predictions of individual observations
- Also need to know the shape of the distribution within each group
- Methods implemented in software often rely on strong assumptions like Normality

2 Estimation (prediction) of summary measures

Given age, height, and sex, estimate the mean (or geometric mean) FEV
- Use linear regression to obtain estimates and CI
Given age and PSA, estimate the probability (or odds) of remaining in remission for 24 months
- Use logistic regression to obtain estimates and CI
Assumptions
- Independence (between clusters for robust SE)
- Variance approximated by the model (relaxed for robust SE)
- Regression model accurately describes the relationship of summary measures across groups
- Sufficient sample sizes for asymptotic distributions of parameters to be a good approximation

2.1 Point estimates

Point estimates obtained by substitution of predictor values into the estimated regression equation
- $E[\textrm{Chol} | \textrm{Age}] = 200 + 0.33 \times \textrm{Age}$
  - Expected cholesterol for 50 year old is $200 + 0.33 \times 50 = 216.5$
- $\textrm{logodds}(\textrm{Survival} | \textrm{Age}) = -0.1365 - 0.007899 \times \textrm{Age}$
  - Expected log-odds of Survival for a 50 year old is $-0.1365 - 0.007899 \times 50 = -0.53$
  - Expected odds $= e^{-.53} = 0.59$
  - Expected probability $= 0.37$

2.2 Interval estimates

If assumptions hold, interval estimates can be obtained
- We generally find a confidence interval for the transformed quantity, and then back transform to the desired quantity
  - For logistic regression, calculate the CI for the log odds, the transform to odds or probability
Statistical criteria for determining the “best” estimate
- Consistent: Correct estimate (with infinite sample size)
- Precise: Minimum variance among (unbiased) estimators
- Common regression methods provide the best estimate in a wide variety of settings
Necessary assumptions
- Independence
- Variance approximated by the model (relaxed for robust SE)
- Regression model accurately describes the relationship among summary measures across groups
- Sufficient sample size so that asymptotic Normality of the parameter estimates holds
Interval estimates
- When we substitute in the predictor values, it provides an estimate of the model transformation of the summary measure
- Model transformation of the summary measure varies by regression setting
  - Linear regression: Mean
  - Linear regression on log transformed outcome: Log geometric mean
  - Logistic regression: Log odds
  - Poisson regression: Log rate
- Formulas for the confidence interval
  - In general: $\textrm{(estimate)} \pm \textrm{(crit value)} \times \textrm{(std error)}$
  - In linear regression, the $t$ distribution is usually used to obtain the confidence interval
    - Stata: $\textrm{(crit value)} = \texttt{invttail}(df, \alpha/2)$
    - R: $\textrm{(crit value)} = \texttt{qt}(1-\alpha/2, df)$
    - Degrees of freedom $df = n - \textrm{number of predictors in model}$
  - In other regressions, we use the standard Normal distribution
    - Stata: $\textrm{(crit value)} = \texttt{invnorm}(1 - \alpha/2) = 1.96$
    - R: $\textrm{(crit value)} = \texttt{qnorm}(1-\alpha/2) = 1.96$
Interval estimates in Stata
- After any regression command, the Stata command predict will give compute estimates and standard errors
- predict varname, [what]
  - varname is that name of the new variable to be created
  - what is one of
    - xb: The linear predictor (works for all regression)
    - stdp: Standard error of the linear prediction
    - p: For logistic regression, to predicted probability
Interval estimates in R
- After storing a model, the R function predict will give compute estimates and standard errors
- predict(object, se.fit=FALSE, ...)
  - object is the stored fitted model
  - se.fit will provide the standard error of the fit (defaults to FALSE)
  - See help(predict) for more details and options

. gen logfev = log(fev)

. regress logfev height age

      Source |       SS       df       MS              Number of obs =     654
-------------+------------------------------           F(  2,   651) = 1361.98
       Model |  58.5363336     2  29.2681668           Prob > F      =  0.0000
    Residual |  13.9895809   651  .021489372           R-squared     =  0.8071
-------------+------------------------------           Adj R-squared =  0.8065
       Total |  72.5259145   653  .111065719           Root MSE      =  .14659

------------------------------------------------------------------------------
      logfev |      Coef.   Std. Err.      t    P>|t|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
      height |   .0439913   .0016473    26.71   0.000     .0407567    .0472259
         age |   .0198162   .0031805     6.23   0.000     .0135709    .0260616
       _cons |  -1.971147   .0783322   -25.16   0.000    -2.124961   -1.817332
------------------------------------------------------------------------------
.
. predict fitlogfev
(option xb assumed; fitted values)

. predict sefit, stdp
.
. gen gmfev= exp(fitlogfev)
. gen gmlofev = exp(fitlogfev - invttail(651, .025) * sefit)
. gen gmhifev = exp(fitlogfev + invttail(651, .025) * sefit)
.
. list gmfev gmlofev gmhifev if age==10 & height==66

     +--------------------------------+
     |    gmfev    gmlofev    gmhifev |
     |--------------------------------|
330. | 3.097021   3.038578   3.156588 |
...
547. | 3.097021   3.038578   3.156588 |
     +--------------------------------+

. logit smoker height age

Logistic regression                               Number of obs   =        654
                                                  LR chi2(2)      =     106.39
                                                  Prob > chi2     =     0.0000
Log likelihood = -158.52851                       Pseudo R2       =     0.2512

------------------------------------------------------------------------------
      smoker |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
      height |   .0505297   .0410562     1.23   0.218     -.029939    .1309984
         age |   .4377213   .0661923     6.61   0.000     .3079868    .5674557
       _cons |  -10.45429   2.351283    -4.45   0.000    -15.06272   -5.845856
------------------------------------------------------------------------------

. predict logodds, xb
. predict selogodds, stdp
.
. gen odds= exp(logodds)
. gen oddslo= exp(logodds - 1.96 * selogodds)
. gen oddshi= exp(logodds + 1.96 * selogodds)

. list odds oddslo oddshi if age==10 & height==66

     +--------------------------------+
     |     odds     oddslo     oddshi |
     |--------------------------------|
330. | .0644342   .0400909   .1035588 |
...
547. | .0644342   .0400909   .1035588 |
     +--------------------------------+

3 Prediction (forecasting) of individual observations

Methods are for continuous outcomes
- Will deal with discrimination of binary outcomes in next section
Given age, height, and sex, predict a new subject’s FEV
- Use linear regression to obtain estimates and CI

3.1 Assumptions

Necessary assumptions to predict individual observations
- Independence (between clusters for robust SE)
- Variance approximated by the model (NOT relaxed for robust SE)
- Regression model accurately describes the relationship of summary measures across groups
- Shape of the distribution the same in each group
  - Transformation of the outcome may be very useful
- Sufficient sample sizes for asymptotic distributions of parameters to be a good approximation
Assumptions are very strong
- Consequently, we do not have many methods that provide robust inference
  - In general, I prefer methods that make as few assumptions as possible
  - Robust standard errors will not help in this situation
- Proper transformation of outcomes and predictors may be necessary so that underlying assumptions of classical linear regression model hold
  - Models, estimates, will need to be appropriately penalized for valid inference
  - Topic of more advanced regression courses (Regression Modeling Strategies)
- Precise methods have been developed for
  - Binary variables (the mean specifies the variances)
  - Continuous data that follow a Normal distribution

3.2 Point and interval estimates for Normal data

Point estimates obtained by substitution into the estimated regression equation
- $E[\textrm{Chol} | \textrm{Age}] = 200 + 0.33 \times \textrm{Age}$
  - Expected cholesterol for 50 year old is $200 + 0.33 \times 50 = 216.5$
- When we substitute in age values, it provides an estimate of the forecast cholesterol
Interval estimates
- Under appropriate assumptions, we can obtain standard errors for such predictions
- Standard errors must account for two sources of variability
  - Variability in estimating the regression parameters (same as in predictions of summary measures)
  - Variability due to subject
    - Additional variability about the sample mean; “within group standard deviation”
    - Estimating this sources of variability is where the additional Normality assumption is key
- Formulas for the prediction interval
  - In general: $\textrm{(prediction)} \pm \textrm{(crit value)} \times \textrm{(std error)}$
  - In linear regression, the $t$ distribution is usually used to obtain the prediction interval
    - Stata: $\textrm{(crit value)} = \texttt{invttail}(df, \alpha/2)$
    - R: $\textrm{(crit value)} = \texttt{qt}(1-\alpha/2, df)$
    - Degrees of freedom $df = n - \textrm{number of predictors in model}$
Interval estimates in Stata
- After any regression command, the Stata command predict will give compute estimates and standard errors
- predict varname, [what]
  - varname is that name of the new variable to be created
  - what is one of
    - xb: The linear predictor (works for all regression)
    - stdf: Standard error of the forecast prediction
Interval estimates in R
- After storing a model, the R function predict will give compute estimates and standard errors
- predict(object, se.fit=FALSE, ...)
  - object is the stored fitted model
  - se.fit will provide the standard error of the fit (defaults to FALSE)
  - For the standard error of the forecast, need to include the root mean squared error
    - $\textrm{se}_\textrm{pred}^2 = \textrm{se}_\textrm{fit}^2 + \textrm{RMSE}^2$
General comment about software
- Commercial software only implements prediction intervals by assuming Normal data
- If using R libraries (or Stata ado files) for prediction, carefully investigate and understand how they are making predictions
  - Don’t trust the “black box” to be giving you results that are widely applicable to all situations
- Be careful that you understand exactly what is going on if you are interested in making predictions

3.3 Example: FEV by age and height

. regress logfev height age

      Source |       SS       df       MS              Number of obs =     654
-------------+------------------------------           F(  2,   651) = 1361.98
       Model |  58.5363336     2  29.2681668           Prob > F      =  0.0000
    Residual |  13.9895809   651  .021489372           R-squared     =  0.8071
-------------+------------------------------           Adj R-squared =  0.8065
       Total |  72.5259145   653  .111065719           Root MSE      =  .14659

------------------------------------------------------------------------------
      logfev |      Coef.   Std. Err.      t    P>|t|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
      height |   .0439913   .0016473    26.71   0.000     .0407567    .0472259
         age |   .0198162   .0031805     6.23   0.000     .0135709    .0260616
       _cons |  -1.971147   .0783322   -25.16   0.000    -2.124961   -1.817332
------------------------------------------------------------------------------

. predict fitlogfev
(option xb assumed; fitted values)
. predict sepredict, stdf

. gen predfev= exp(fitlogfev)
. gen predlofev = exp(fitlogfev - invttail(651, .025) * sepredict)
. gen predhifev = exp(fitlogfev + invttail(651, .025) * sepredict)

. list predfev predlofev predhifev if age==10 & height==66

     +--------------------------------+
     |  predfev   predlo~v   predhi~v |
     |--------------------------------|
330. | 3.097021   2.320911   4.132662 |
...
547. | 3.097021   2.320911   4.132662 |
     +--------------------------------+

The preceding output gave prediction for individual observations
We can compare these results to the prediction for summary measures done previously (see below)
```
     +-----------------------------------------------------------------+
     |    gmfev    gmlofev    gmhifev    predfev   pre~ofev   predhi~v |
     |-----------------------------------------------------------------|
330. | 3.097021   3.038578   3.156588   3.097021   2.320911   4.132662 |
     +-----------------------------------------------------------------+
```
- Point estimates identical
- Confidence interval for individual predictions is wider
- As $n$ increases, the width of the prediction interval (on the log scale) approaches $\pm 1.96 \times \textrm{RMSE}$
- As $n$ increases, the width of the interval around the summary measure approaches $0$

We can also calculate the standard error of the prediction

Example: Age is 10 and Height is 66

. gen sepredict2 = sepredict^2
. gen sefit2 = sefit^2
. list sepredict sefit sepredict2 sefit2 if age==10 & heigh==66

     +------------------------------------------+
     | sepred~t     sefit   sepred~2     sefit2 |
     |------------------------------------------|
330. | .1469132   .009702   .0215835   .0000941 |
     +------------------------------------------+

. di .14659^2 +.0000941
.02158273

$\textrm{se}_\textrm{pred}^2 = \textrm{se}_\textrm{fit}^2 + \textrm{RMSE}^2$
- $\textrm{se}_\textrm{pred} = 0.1469132$
- $\textrm{se}_\textrm{fit} = 0.0215835$
- $\textrm{RMSE} = 0.14659$
Note that discrepancy in hand calculation versus Stata output (0.215835 vs 0.2158273) is due to rounding error

This is an academic exercise in Stata, but necessary in R (unless you can find a function to do it for you)

3.4 Mathematics of Prediction Intervals

Basic ideas behind prediction intervals
Model: $Y_i | X_i \sim N(\beta_0 + \beta_1 X_i, \sigma^2)$
Alternative specification: $Y_i | X_i = \beta_0 + \beta_1 X_i + \epsilon_i$
- $\epsilon_i \sim N(0, \sigma^2)$
Estimated mean: $\hat{\beta}_0 + \hat{\beta}_1 X_i \sim N\left(\beta_0 + \beta_1 X_i, \sigma^2 V\right)$
Predicted value of individual observation: $\hat{\beta}_0 + \hat{\beta}_1 X_i + \epsilon_i \sim N\left(\beta_0 + \beta_1 X_i, \sigma^2 (1 + V)\right)$
- $V = \frac{1}{n} + \frac{(X_h - \overline{X})^2}{\sum_{i=1}^n (X_i - \overline{X})^2}$
- $X_h$ is the chosen value of the covariate (e.g. age==10)
- Note: As $n \rightarrow \infty, V \rightarrow 0$

4 Prediction of Binary Measurements

4.1 Classification (discrimination)

Sometimes the scientific question is one of deriving a rule to classify subjects
- Diagnosis of prostate cancer: Based on age, race, and PSA, should we make a diagnosis of prostate cancer?
- Prognosis of patients with primary biliary cirrhosis: Based on age, bilirubin, albumin, edema, protime, is the patient likely to die within the next year?
Classification can be regarded as trying to predict the value of a binary variable
- Earlier, we were estimating the probability and odds of relapse within a particular group (a summary measure)
- Now we want to decide whether a particular individual will relapse or not (an individual measure)
- There is an obvious connection between the above two ideas
  - The probability or odds tells us everything about the distribution of values
  - The only possible values are 0 or 1
Typical approach
- First, use regression model to estimate the probability of event in each group
- Second, form a decision rule based on estimated probability of event
  - If estimate $\geq c$ (or $\leq c$), predict outcome is 1
  - If estimate $< c$ (or $> c$), predict outcome is 0
- Quantify the accuracy of the decision rule
- For disease $D$ and test $T$
  - Sensitivity: $\textrm{Pr}(T^+ | D^+)$
  - Specificity: $\textrm{Pr}(T^- | D^-)$
  - Predicted Value Positive: $\textrm{Pr}(D^+ | T^+)$
  - Predicted Value Negative: $\textrm{Pr}(D^- | T^-)$

4.2 Stepwise model building

Old method for considering a large number of covariates that might possibly be predictive of an outcome
- “If stepwise model building had been proposed today, it would not have passed peer review”
Available in all software as an automated tool, but should not be used
Avoid recreating the stepwise approach when building your own models manually
Major caveats
- Overfits your dataset
- P-values are not true p-values; they are very anti-conservative
- You will often obtain different models if you use “forward” or “backward” stepwise regression
- Ignores confounding effects (a variable could be an important confounder, but itself not be statistically significant in the model)
- Without clustering certain predictors, may throw out covariates to make non-sensical model
  - Suppose race/ethnicity is coded as White, Black, Hispanic, Other
  - Want to model as 3 dummy variables
  - Stepwise may throw out one of your dummy variables, keep the rest
  - Pairwise significance would also be highly dependent on reference group chosen by analyst
Two flavors of stepwide model building
- Start with no covariates: “Forward” stepwise regression
- Start with all covariates: “Backward” stepwise regression
Stepwise procedure proceeds by adding or removing covariates from the model base on the corresponding partial $t$ or $Z$ test
- Must pre-specify a “P to enter” and “P to remove”
- To avoid infinite loops, P to enter must be less than P to remove
- E.g. Add a variable to the model if $p < 0.05$, but only remove a variable from the model if $p > 0.10$
- Repeat the process until you arrive at a final model

4.3 ROC Curves

Receiver operating characteristic (ROC) curves plot the sensitivity against the false positive rate (e.g. 1 - specificity)
Ideal tests will have both high sensitivity and high specificity (low false positives)
- Graphically depicted as points in the upper left portion of the plot
- 1:1 line represents a test that is no better than the flip of a coin
Test usually involves the classification of some binary outcome by a continuous predictor (or set of continuous predictors)
- When the continuous predictor is above some point $c$, the test is said to be positive
- ROC curves plots the sensitivity and false positive rate for all possible values of $c$
Major drawbacks to ROC analysis
- Tempts analyst to find a cutoff point ($c$) when none really exists
- Better to treat your covariate or linear prediction as a continuous variable

4.4 Example 1: Age or height to predict smoking

Question: Is age or height a better predictor of smoking status?
Will compare the ROC curves
- Often done use the area under the curve (AUC)
- Model with higher AUC is better
- A null model (not predictive of outcome) will have area of 0.50
- Maximum AUC is 1.0
Stata
- Fit the logistic regression model
- lroc creates the ROC curve
- predict to save the fitted curves
- roccomp to compare the curves

. logit smoker height

Logistic regression                               Number of obs   =        654
                                                  LR chi2(1)      =      58.27
                                                  Prob > chi2     =     0.0000
Log likelihood = -182.58748                       Pseudo R2       =     0.1376

------------------------------------------------------------------------------
      smoker |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
      height |   .2067181   .0307986     6.71   0.000     .1463539    .2670824
       _cons |  -15.32622   2.017127    -7.60   0.000    -19.27972   -11.37273
------------------------------------------------------------------------------

. lroc, nograph

Logistic model for smoker

number of observations =      654
area under ROC curve   =   0.7882

. predict xb1, xb

.
. logit smoker age

Logistic regression                               Number of obs   =        654
                                                  LR chi2(1)      =     104.88
                                                  Prob > chi2     =     0.0000
Log likelihood = -159.28248                       Pseudo R2       =     0.2477

------------------------------------------------------------------------------
      smoker |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
         age |   .4836394   .0551278     8.77   0.000      .375591    .5916878
       _cons |  -7.743905   .7089008   -10.92   0.000    -9.133325   -6.354485
------------------------------------------------------------------------------

. lroc, nograph

Logistic model for smoker

number of observations =      654
area under ROC curve   =   0.8677

. predict xb2, xb

. roccomp smoker xb1 xb2, graph summary

                              ROC                    -Asymptotic Normal--
                   Obs       Area     Std. Err.      [95% Conf. Interval]
-------------------------------------------------------------------------
xb1                654     0.7882       0.0225        0.74414     0.83227
xb2                654     0.8677       0.0185        0.83152     0.90393
-------------------------------------------------------------------------
Ho: area(xb1) = area(xb2)
    chi2(1) =    11.20       Prob>chi2 =   0.0008

Age has a significantly larger AUC than Height ($p < 0.001$)
For any given false positive rate, the sensitivity is higher for age
- Predicted value positive would also always be higher

4.5 Example 2: Multiple predictors of smoking

Will consider age, height, sex, and fev as predictors of smoking
Fit a multivariable logistic regression model using these covariates in a training sample
- Training sample will contain 60% of the observation in the current study
- Develop a model on the training sample, see how well it fits in the validation sample (the remaining 40% of the data)
Consider a rule that predicts a subject will smoke if their predicted probability is greater than 0.5
- Could choose other cutoffs than 0.5
- Other cutoffs will be represented on the ROC curves
- Sensitivity, specificity will vary by the cutoff chosen

.
. xi: logit smoker age height i.sex fev if training < .6
i.sex             _Isex_1-2           (_Isex_1 for sex==female omitted)

Logistic regression                               Number of obs   =        385
                                                  LR chi2(4)      =      80.02
                                                  Prob > chi2     =     0.0000
Log likelihood = -70.223945                       Pseudo R2       =     0.3629

------------------------------------------------------------------------------
      smoker |      Coef.   Std. Err.      z    P>|z|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
         age |   .6611145   .1276124     5.18   0.000     .4109988    .9112302
      height |   .1834778   .0960597     1.91   0.056    -.0047957    .3717514
     _Isex_2 |  -.7128769   .5392144    -1.32   0.186    -1.769718    .3439639
         fev |  -1.123659   .4514655    -2.49   0.013    -2.008515   -.2388024
       _cons |  -18.18847   5.100367    -3.57   0.000    -28.18501   -8.191936
------------------------------------------------------------------------------
. predict pfit
(option pr assumed; Pr(smoker))
.
. gen pfit50=pfit

. recode pfit50 0/0.5=0 0.5/1=1
(pfit50: 654 changes made)
.
. tabulate smoker pfit50 if training > .6, row col


           |        pfit50
    smoker |         0          1 |     Total
-----------+----------------------+----------
         0 |       226         10 |       236
           |     95.76       4.24 |    100.00
           |     90.04      55.56 |     87.73
-----------+----------------------+----------
         1 |        25          8 |        33
           |     75.76      24.24 |    100.00
           |      9.96      44.44 |     12.27
-----------+----------------------+----------
     Total |       251         18 |       269
           |     93.31       6.69 |    100.00
           |    100.00     100.00 |    100.00

Using a cutoff of 0.50
- Sensitivity: $8/33 = 24.24$
- Specificity: $226/236 = 95.76$
- PVP: $8/18 = 44.44$
- PVN: $226/251 = 90.04$
Thresholds other than 0.50 give different values for sensitivity, specificity, PVP, PVN
- ROC curve displayed gives all possible thresholds

4.6 Analysis of ROC curves in R

There are a number of add on packages that will conduct ROC analysis in R
ROCR is one popular package

4.7 Multivariable prognostic models

Reference
- Harrell FE Jr, Lee KL, Mark DB. Multivariable prognostic models: issues in developing models, evaluating assumptions and adequacy, and measuring and reducing errors. Statistics in Medicine. 15(4): 361-87, Feb 1996
- A “Tutorial is Biostatistics” (frequently appears in Statistics in Medicine)
From abstract of paper
- “Multivariable regression models are powerful tools that are frequently used in clinical outcomes… however uncritical application of modeling techniques can result in models that poorly fit the dataset at hand, or, even more likely, inaccurately predict outcomes on new subjects.”
- “… predictive accuracy should be unbiasedly validated using bootstrapping or cross-validation before using predictions in new data series.”
Common problem: Number of predictors being considered ($p$) is larger than the number of events ($m$)
- Recommendation: Consider no more than $m/10$ potential predictors in a model
- e.g. if event rate is $10\%$ and $n=200$ then $m=20$; only $2$ potential predictors
Step 1: Consider your dataset
- Missing data (imputation?)
- Interactions (scientific relevance?)
- Transformation of predictors (scientific relevance?)
Step 2: Data Reduction
- Reduce the number of predictors to a manageable amount
- Utilize methods that do not consider the outcome (“unsupervised” learning)
  - If you do not use the outcome at this stage, your statistical inference is preserved
  - Correlations among predictors: Variable clustering, principle components analysis
  - Scientifically meaningful summary measures
Step 3: Fit the model and …
- Evaluate modeling assumptions: Linearity, additivity, distributional assumptions
- Use backwards stepwise selection to find a simpler model
  - Harrell: Remove predictor if $\chi^2 > 2$ ($p > 0.16$)
- Will use all data to fit model
Step 4: Evaluate model
- Bootstrap cross-validation
  - Sample data with replacement
  - For each bootstrap sample, the evaluation of modeling assumptions and backwards selection will be performed (these steps use the outcome)
  - Summarize predictive accuracy using a statistic (C-index, Brier score)
- Bootstrap cross-validation provides a nearly unbiased estimate of predictive accuracy (e.g. C-index, Brier score) while allowing the entire model to be used for model development
  - C-index: Area under the ROC curve. Index near 1 indicates higher accuracy.
  - Brier score: Average squared deviation between predicted probability of event and observed outcome. A lower score represents higher accuracy.

4.7.1 Case Study using lrm() in R

Logistic regression model
- Main effects: sex, cholesterol (splines), age (polynomial), and blood pressure (linear)
- Interactions: sex with cholesterol
- (5 predictors maximum)

> f <- lrm(y ~ sex*rcs(cholesterol)+pol(age,2)+blood.pressure, x=TRUE, y=TRUE)
> f

Logistic Regression Model

lrm(formula = y ~ sex * rcs(cholesterol) + pol(age, 2) + blood.pressure,
    x = TRUE, y = TRUE)

                      Model Likelihood     Discrimination    Rank Discrim.
                         Ratio Test            Indexes          Indexes

Obs          1000    LR chi2      84.78    R2       0.109    C       0.660
 0            440    d.f.            12    g        0.704    Dxy     0.321
 1            560    Pr(> chi2) <0.0001    gr       2.023    gamma   0.322
max |deriv| 2e-04                          gp       0.160    tau-a   0.158
                                           Brier    0.226


                          Coef    S.E.   Wald Z Pr(>|Z|)
Intercept                 -2.8990 2.7445 -1.06  0.2908
sex=male                  -5.7526 3.6005 -1.60  0.1101
cholesterol               -0.0027 0.0148 -0.18  0.8552
cholesterol'              -0.0438 0.0793 -0.55  0.5804
cholesterol''              0.1808 0.4591  0.39  0.6937
cholesterol'''            -0.1266 0.7850 -0.16  0.8719
age                        0.1253 0.0475  2.64  0.0083
age^2                     -0.0009 0.0005 -1.88  0.0605
blood.pressure            -0.0018 0.0045 -0.40  0.6901
sex=male * cholesterol     0.0313 0.0218  1.43  0.1515
sex=male * cholesterol'    0.0190 0.1146  0.17  0.8683
sex=male * cholesterol''  -0.1227 0.6718 -0.18  0.8551
sex=male * cholesterol'''  0.1315 1.1752  0.11  0.9109

Validation…
- Backwards stepwise regression
  - Different bootstrap sample will remove different covariates
  - Indicates which covariates were included for each sample
- Estimates of discrimination indexes

> validate(f, B=150, bw=TRUE, rule="p", sls=.1, type="individual")

                Backwards Step-down - Original Model

 Deleted        Chi-Sq d.f. P      Residual d.f. P      AIC
 blood.pressure 0.16   1    0.6901 0.16     1    0.6901 -1.84
 cholesterol    7.35   4    0.1184 7.51     5    0.1853 -2.49

Approximate Estimates after Deleting Factors

                                Coef      S.E.    Wald Z        P
Intercept                 -3.9763208 1.1849888 -3.355577 0.000792
sex=male                  -4.9024437 2.6546474 -1.846740 0.064785
age                        0.1246156 0.0473845  2.629884 0.008541
age^2                     -0.0008688 0.0004677 -1.857457 0.063246
sex=male * cholesterol     0.0286721 0.0160278  1.788897 0.073631
sex=male * cholesterol'   -0.0252835 0.0827977 -0.305365 0.760088
sex=male * cholesterol''   0.0634986 0.4907718  0.129385 0.897053
sex=male * cholesterol''' -0.0071007 0.8750440 -0.008115 0.993526

Factors in Final Model

[1] sex               age               sex * cholesterol

          index.orig training   test optimism index.corrected   n
Dxy           0.3082   0.3301 0.2986   0.0316          0.2766 150
R2            0.0995   0.1184 0.0946   0.0238          0.0757 150
Intercept     0.0000   0.0000 0.0263  -0.0263          0.0263 150
Slope         1.0000   1.0000 0.8879   0.1121          0.8879 150
Emax          0.0000   0.0000 0.0308   0.0308          0.0308 150
D             0.0762   0.0917 0.0722   0.0195          0.0567 150
U            -0.0020  -0.0020 0.0016  -0.0036          0.0016 150
Q             0.0782   0.0937 0.0706   0.0231          0.0551 150
B             0.2279   0.2244 0.2295  -0.0051          0.2330 150
g             0.6650   0.7374 0.6452   0.0922          0.5729 150
gp            0.1512   0.1651 0.1477   0.0173          0.1339 150

Factors Retained in Backwards Elimination

 sex cholesterol age blood.pressure sex * cholesterol
 *               *                  *
 *   *           *                  *
 *               *                  *
     *           *                  *
 *   *           *                  *
 *   *           *                  *
     *           *                  *
     *           *                  *
(output omitted; continues for each bootstrap sample)

Frequencies of Numbers of Factors Retained

 2  3  4  5
18 74 55  3

--- title: "Regression Based Prediction" subtitle: "Lecture 13" name: Lec13.Prediction.qmd --- ```{r} library(rms) library(ggplot2) tryCatch(source('pander_registry.R'), error = function(e) invisible(e)) ``` ## Overview ### Uses of Regression - Cluster Analysis - Focuses on identifying observations (covariates) with similar characteristics - Interest lies in finding clusters that are more (or less) likely to have some outcome of interest - Divide a population into subgroups based on patterns of similar measurement - Clustering can be done by considering one variable (univariable) or multiple variables (multivariable) - Number of clusters can be known or unknown - Examples - Microarrays - fMRI - "Small $n$, large $p$" (few subjects, many predictors) - Statistical techniques - Stepwise regression - Regression trees - Other data-driven model building approaches - Getting valid inference (i.e. reliable p-values, unbiased parameter estimates) particularly challenging - Area of active research in Biostatistics - Quantifying and comparing distributions - Compare distribution of the outcome variable across levels of the grouping variable or variables - Compare salary in males and females, across professors of the same rank, degree, experience, and field - Compare FEV in smokers and non-smokers, across teenagers of the same age and height - Need to decide which summary measure is appropriate for describing the distribution - Common summary measures: Means, median, geometric mean, odds, rates, hazards - Other measures: Variance, skewness, kurtosis, likelihood of extreme values, quantiles, etc. - May desire estimates within specific subgroups - Estimates of the association within gender, race, or age groups - (This is effect modification) - Regression based prediction - Prediction of summary measures - Point prediction - Best single estimate for the measurement that would be obtained, on average, for many individuals with given covariates - Interval prediction - Quantify the uncertainty of the average - Range of summary measure that might be reasonable to observe - Prediction of individual measurements - Point prediction - Best single estimate for the measurement that would be obtained on a single individual with given covariates - Interval prediction - Quantify the uncertainty of the individual prediction - Range of measurements that might reasonably be observed in a future individual with given covariates ### Examples of Prediction #### Continuous prediction: Creatinine clearance - Creatinine is a continuously produced breakdown product in muscles - Removed by the kidney through filtration - Amount of creatinine cleared by the kidneys in 24 hours is a measure of renal function - Gold standard is to collect urine output for 24 hours, measure creatinine - Would prefer to find a combination of blood and urine measures that can be obtained at one time point, yet still provides accurate prediction of a patient's creatinine clearance - Statistical approach - Collect a training dataset to build a regression model for prediction - Measure true creatinine clearance - Measure age, gender, weight, height, blood makers, urinary markers, etc. - Fit a (data driven?) regression model to predict true creatinine clearance - Collect a validation dataset - Use the regression estimates (the $\beta$s) from the training dataset to see how well your model predict creatinine clearance - Quantify the accuracy of the predictive model (e.g. mean squared error) - Cross validation #### Discrimination (binary prediction): Low birth weight - Want to predict which infants are more likely to be less than 2500 grams at birth - Possible predictors: Age, race, blood biomarkers collected during pregnancy - Statistical Approach - Collect a training dataset to build a regression model for prediction - Measure birth weight - Measure age, race, blood biomarkers - Fit a (data driven?) regression model to predict low birth weight - Collect a validation dataset - Use the regression estimates (the $\beta$s) from the training dataset to see how well your model predict low birth weight - Quantify the accuracy of the predictive model - Sensitivity, specificity (ROC curves) - Predictive value positive, predictive value negative #### Interval prediction: Normal ranges of PSA - Identify the range of PSA values that would be expected in 95% of most healthy adult males - Possibly stratify by age, race - Statistical Approach - Collect a training dataset to build a regression model for prediction - Measure PSA and variable to predict PSA - Need to estimate the quantiles - Mean plus/minus 2 standard deviations (makes strong Normality assumption) - Estimate the quantiles, provide CIs around the quantiles (likely low precision) - Collect a validation dataset - Quantify the accuracy of the predictive model (e.g. coverage probabilities) ### Assumptions needed for inference #### Inference for associations - Necessary assumptions for classical regression (no robust standard errors) - Independence of response measurements within identified clusters - Have appropriately modeled the within group variance - Linear regression: Equal variance across groups - Other regressions: Appropriate mean-variance relationship - Lack of model fit may lead to poor estimate of the variance - Sample size is large enough so that parameter estimates approximately follow a Normal distribution - Necessary assumptions for first order trends using robust standard errors - Independence of response measurements within identified clusters - (Robust standard errors accounts for heteroscedasticity in large samples) - Lack of model fit leads to conservative inference due to mixing systematic and random error - Sample size is large enough so that parameter estimates approximately follow a Normal distribution #### Inference for predictions - Additional assumptions for predictions of means - Our regression model has accurately described the relationship between summary measures across groups - For continuous covariates, often involves flexible models that allow for departures from linearity - Additional assumptions for predictions of individual observations - Also need to know the shape of the distribution within each group - Methods implemented in software often rely on strong assumptions like Normality ## Estimation (prediction) of summary measures - Given age, height, and sex, estimate the mean (or geometric mean) FEV - Use linear regression to obtain estimates and CI - Given age and PSA, estimate the probability (or odds) of remaining in remission for 24 months - Use logistic regression to obtain estimates and CI - Assumptions - Independence (between clusters for robust SE) - Variance approximated by the model (relaxed for robust SE) - Regression model accurately describes the relationship of summary measures across groups - Sufficient sample sizes for asymptotic distributions of parameters to be a good approximation ### Point estimates - Point estimates obtained by substitution of predictor values into the estimated regression equation - $E[\textrm{Chol} | \textrm{Age}] = 200 + 0.33 \times \textrm{Age}$ - Expected cholesterol for 50 year old is $200 + 0.33 \times 50 = 216.5$ - $\textrm{logodds}(\textrm{Survival} | \textrm{Age}) = -0.1365 - 0.007899 \times \textrm{Age}$ - Expected log-odds of Survival for a 50 year old is $-0.1365 - 0.007899 \times 50 = -0.53$ - Expected odds $= e^{-.53} = 0.59$ - Expected probability $= 0.37$ ### Interval estimates - If assumptions hold, interval estimates can be obtained - We generally find a confidence interval for the transformed quantity, and then back transform to the desired quantity - For logistic regression, calculate the CI for the log odds, the transform to odds or probability - Statistical criteria for determining the "best" estimate - Consistent: Correct estimate (with infinite sample size) - Precise: Minimum variance among (unbiased) estimators - Common regression methods provide the best estimate in a wide variety of settings - Necessary assumptions - Independence - Variance approximated by the model (relaxed for robust SE) - **Regression model accurately describes the relationship among summary measures across groups** - Sufficient sample size so that asymptotic Normality of the parameter estimates holds - Interval estimates - When we substitute in the predictor values, it provides an estimate of the model transformation of the summary measure - Model transformation of the summary measure varies by regression setting - Linear regression: Mean - Linear regression on log transformed outcome: Log geometric mean - Logistic regression: Log odds - Poisson regression: Log rate - Formulas for the confidence interval - In general: $\textrm{(estimate)} \pm \textrm{(crit value)} \times \textrm{(std error)}$ - In linear regression, the $t$ distribution is usually used to obtain the confidence interval - Stata: $\textrm{(crit value)} = \texttt{invttail}(df, \alpha/2)$ - R: $\textrm{(crit value)} = \texttt{qt}(1-\alpha/2, df)$ - Degrees of freedom $df = n - \textrm{number of predictors in model}$ - In other regressions, we use the standard Normal distribution - Stata: $\textrm{(crit value)} = \texttt{invnorm}(1 - \alpha/2) = 1.96$ - R: $\textrm{(crit value)} = \texttt{qnorm}(1-\alpha/2) = 1.96$ - Interval estimates in Stata - After any regression command, the Stata command `predict` will give compute estimates and standard errors - `predict varname, [what]` - `varname` is that name of the new variable to be created - `what` is one of - xb: The linear predictor (works for all regression) - stdp: Standard error of the linear prediction - p: For logistic regression, to predicted probability - Interval estimates in R - After storing a model, the R function `predict` will give compute estimates and standard errors - `predict(object, se.fit=FALSE, ...)` - `object` is the stored fitted model - `se.fit` will provide the standard error of the fit (defaults to `FALSE`) - See `help(predict)` for more details and options  ``` stata . gen logfev = log(fev) . regress logfev height age Source | SS df MS Number of obs = 654 -------------+------------------------------ F( 2, 651) = 1361.98 Model | 58.5363336 2 29.2681668 Prob > F = 0.0000 Residual | 13.9895809 651 .021489372 R-squared = 0.8071 -------------+------------------------------ Adj R-squared = 0.8065 Total | 72.5259145 653 .111065719 Root MSE = .14659 ------------------------------------------------------------------------------ logfev | Coef. Std. Err. t P>|t| [95% Conf. Interval] -------------+---------------------------------------------------------------- height | .0439913 .0016473 26.71 0.000 .0407567 .0472259 age | .0198162 .0031805 6.23 0.000 .0135709 .0260616 _cons | -1.971147 .0783322 -25.16 0.000 -2.124961 -1.817332 ------------------------------------------------------------------------------ . . predict fitlogfev (option xb assumed; fitted values) . predict sefit, stdp . . gen gmfev= exp(fitlogfev) . gen gmlofev = exp(fitlogfev - invttail(651, .025) * sefit) . gen gmhifev = exp(fitlogfev + invttail(651, .025) * sefit) . . list gmfev gmlofev gmhifev if age==10 & height==66 +--------------------------------+ | gmfev gmlofev gmhifev | |--------------------------------| 330. | 3.097021 3.038578 3.156588 | ... 547. | 3.097021 3.038578 3.156588 | +--------------------------------+ . logit smoker height age Logistic regression Number of obs = 654 LR chi2(2) = 106.39 Prob > chi2 = 0.0000 Log likelihood = -158.52851 Pseudo R2 = 0.2512 ------------------------------------------------------------------------------ smoker | Coef. Std. Err. z P>|z| [95% Conf. Interval] -------------+---------------------------------------------------------------- height | .0505297 .0410562 1.23 0.218 -.029939 .1309984 age | .4377213 .0661923 6.61 0.000 .3079868 .5674557 _cons | -10.45429 2.351283 -4.45 0.000 -15.06272 -5.845856 ------------------------------------------------------------------------------ . predict logodds, xb . predict selogodds, stdp . . gen odds= exp(logodds) . gen oddslo= exp(logodds - 1.96 * selogodds) . gen oddshi= exp(logodds + 1.96 * selogodds) . list odds oddslo oddshi if age==10 & height==66 +--------------------------------+ | odds oddslo oddshi | |--------------------------------| 330. | .0644342 .0400909 .1035588 | ... 547. | .0644342 .0400909 .1035588 | +--------------------------------+ ``` ## Prediction (forecasting) of individual observations - Methods are for continuous outcomes - Will deal with discrimination of binary outcomes in next section - Given age, height, and sex, predict a new subject's FEV - Use linear regression to obtain estimates and CI ### Assumptions - Necessary assumptions to predict individual observations - Independence (between clusters for robust SE) - Variance approximated by the model (NOT relaxed for robust SE) - Regression model accurately describes the relationship of summary measures across groups - Shape of the distribution the same in each group - Transformation of the outcome may be very useful - Sufficient sample sizes for asymptotic distributions of parameters to be a good approximation - Assumptions are very strong - Consequently, we do not have many methods that provide robust inference - In general, I prefer methods that make as few assumptions as possible - Robust standard errors will not help in this situation - Proper transformation of outcomes and predictors may be necessary so that underlying assumptions of classical linear regression model hold - Models, estimates, will need to be appropriately penalized for valid inference - Topic of more advanced regression courses (Regression Modeling Strategies) - Precise methods have been developed for - Binary variables (the mean specifies the variances) - Continuous data that follow a Normal distribution ### Point and interval estimates for Normal data - Point estimates obtained by substitution into the estimated regression equation - $E[\textrm{Chol} | \textrm{Age}] = 200 + 0.33 \times \textrm{Age}$ - Expected cholesterol for 50 year old is $200 + 0.33 \times 50 = 216.5$ - When we substitute in age values, it provides an estimate of the forecast cholesterol - Interval estimates - Under appropriate assumptions, we can obtain standard errors for such predictions - Standard errors must account for two sources of variability - Variability in estimating the regression parameters (same as in predictions of summary measures) - Variability due to subject - Additional variability about the sample mean; "within group standard deviation" - Estimating this sources of variability is where the additional Normality assumption is key - Formulas for the prediction interval - In general: $\textrm{(prediction)} \pm \textrm{(crit value)} \times \textrm{(std error)}$ - In linear regression, the $t$ distribution is usually used to obtain the prediction interval - Stata: $\textrm{(crit value)} = \texttt{invttail}(df, \alpha/2)$ - R: $\textrm{(crit value)} = \texttt{qt}(1-\alpha/2, df)$ - Degrees of freedom $df = n - \textrm{number of predictors in model}$ - Interval estimates in Stata - After any regression command, the Stata command `predict` will give compute estimates and standard errors - `predict varname, [what]` - `varname` is that name of the new variable to be created - `what` is one of - xb: The linear predictor (works for all regression) - stdf: Standard error of the forecast prediction - Interval estimates in R - After storing a model, the R function `predict` will give compute estimates and standard errors - `predict(object, se.fit=FALSE, ...)` - `object` is the stored fitted model - `se.fit` will provide the standard error of the fit (defaults to `FALSE`) - For the standard error of the forecast, need to include the root mean squared error - $\textrm{se}_\textrm{pred}^2 = \textrm{se}_\textrm{fit}^2 + \textrm{RMSE}^2$ - General comment about software - Commercial software only implements prediction intervals by assuming Normal data - If using R libraries (or Stata ado files) for prediction, carefully investigate and understand how they are making predictions - Don't trust the "black box" to be giving you results that are widely applicable to all situations - Be careful that you understand exactly what is going on if you are interested in making predictions ### Example: FEV by age and height ``` stata . regress logfev height age Source | SS df MS Number of obs = 654 -------------+------------------------------ F( 2, 651) = 1361.98 Model | 58.5363336 2 29.2681668 Prob > F = 0.0000 Residual | 13.9895809 651 .021489372 R-squared = 0.8071 -------------+------------------------------ Adj R-squared = 0.8065 Total | 72.5259145 653 .111065719 Root MSE = .14659 ------------------------------------------------------------------------------ logfev | Coef. Std. Err. t P>|t| [95% Conf. Interval] -------------+---------------------------------------------------------------- height | .0439913 .0016473 26.71 0.000 .0407567 .0472259 age | .0198162 .0031805 6.23 0.000 .0135709 .0260616 _cons | -1.971147 .0783322 -25.16 0.000 -2.124961 -1.817332 ------------------------------------------------------------------------------ . predict fitlogfev (option xb assumed; fitted values) . predict sepredict, stdf . gen predfev= exp(fitlogfev) . gen predlofev = exp(fitlogfev - invttail(651, .025) * sepredict) . gen predhifev = exp(fitlogfev + invttail(651, .025) * sepredict) . list predfev predlofev predhifev if age==10 & height==66 +--------------------------------+ | predfev predlo~v predhi~v | |--------------------------------| 330. | 3.097021 2.320911 4.132662 | ... 547. | 3.097021 2.320911 4.132662 | +--------------------------------+ ``` - The preceding output gave prediction for individual observations - We can compare these results to the prediction for summary measures done previously (see below) ``` +-----------------------------------------------------------------+ | gmfev gmlofev gmhifev predfev pre~ofev predhi~v | |-----------------------------------------------------------------| 330. | 3.097021 3.038578 3.156588 3.097021 2.320911 4.132662 | +-----------------------------------------------------------------+ ``` - Point estimates identical - Confidence interval for individual predictions is wider - As $n$ increases, the width of the prediction interval (on the log scale) approaches $\pm 1.96 \times \textrm{RMSE}$ - As $n$ increases, the width of the interval around the summary measure approaches $0$  - We can also calculate the standard error of the prediction - Example: Age is 10 and Height is 66 ``` stata . gen sepredict2 = sepredict^2 . gen sefit2 = sefit^2 . list sepredict sefit sepredict2 sefit2 if age==10 & heigh==66 +------------------------------------------+ | sepred~t sefit sepred~2 sefit2 | |------------------------------------------| 330. | .1469132 .009702 .0215835 .0000941 | +------------------------------------------+ . di .14659^2 +.0000941 .02158273 ``` - $\textrm{se}_\textrm{pred}^2 = \textrm{se}_\textrm{fit}^2 + \textrm{RMSE}^2$ - $\textrm{se}_\textrm{pred} = 0.1469132$ - $\textrm{se}_\textrm{fit} = 0.0215835$ - $\textrm{RMSE} = 0.14659$ - Note that discrepancy in hand calculation versus Stata output (0.215835 vs 0.2158273) is due to rounding error - This is an academic exercise in Stata, but necessary in R (unless you can find a function to do it for you) ### Mathematics of Prediction Intervals - Basic ideas behind prediction intervals - Model: $Y_i | X_i \sim N(\beta_0 + \beta_1 X_i, \sigma^2)$ - Alternative specification: $Y_i | X_i = \beta_0 + \beta_1 X_i + \epsilon_i$ - $\epsilon_i \sim N(0, \sigma^2)$ - Estimated mean: $\hat{\beta}_0 + \hat{\beta}_1 X_i \sim N\left(\beta_0 + \beta_1 X_i, \sigma^2 V\right)$ - Predicted value of individual observation: $\hat{\beta}_0 + \hat{\beta}_1 X_i + \epsilon_i \sim N\left(\beta_0 + \beta_1 X_i, \sigma^2 (1 + V)\right)$ - $V = \frac{1}{n} + \frac{(X_h - \overline{X})^2}{\sum_{i=1}^n (X_i - \overline{X})^2}$ - $X_h$ is the chosen value of the covariate (e.g. age==10) - Note: As $n \rightarrow \infty, V \rightarrow 0$ ## Prediction of Binary Measurements ### Classification (discrimination) - Sometimes the scientific question is one of deriving a rule to classify subjects - Diagnosis of prostate cancer: Based on age, race, and PSA, should we make a diagnosis of prostate cancer? - Prognosis of patients with primary biliary cirrhosis: Based on age, bilirubin, albumin, edema, protime, is the patient likely to die within the next year? - Classification can be regarded as trying to predict the value of a binary variable - Earlier, we were estimating the probability and odds of relapse within a particular group (a summary measure) - Now we want to decide whether a particular individual will relapse or not (an individual measure) - There is an obvious connection between the above two ideas - The probability or odds tells us everything about the distribution of values - The only possible values are 0 or 1 - Typical approach - First, use regression model to estimate the probability of event in each group - Second, form a decision rule based on estimated probability of event - If estimate $\geq c$ (or $\leq c$), predict outcome is 1 - If estimate $< c$ (or $> c$), predict outcome is 0 - Quantify the accuracy of the decision rule - For disease $D$ and test $T$ - Sensitivity: $\textrm{Pr}(T^+ | D^+)$ - Specificity: $\textrm{Pr}(T^- | D^-)$ - Predicted Value Positive: $\textrm{Pr}(D^+ | T^+)$ - Predicted Value Negative: $\textrm{Pr}(D^- | T^-)$ ### Stepwise model building - Old method for considering a large number of covariates that might possibly be predictive of an outcome - "If stepwise model building had been proposed today, it would not have passed peer review" - Available in all software as an automated tool, but should not be used - Avoid recreating the stepwise approach when building your own models manually - Major caveats - Overfits your dataset - P-values are not true p-values; they are very anti-conservative - You will often obtain different models if you use "forward" or "backward" stepwise regression - Ignores confounding effects (a variable could be an important confounder, but itself not be statistically significant in the model) - Without clustering certain predictors, may throw out covariates to make non-sensical model - Suppose race/ethnicity is coded as White, Black, Hispanic, Other - Want to model as 3 dummy variables - Stepwise may throw out one of your dummy variables, keep the rest - Pairwise significance would also be highly dependent on reference group chosen by analyst - Two flavors of stepwide model building - Start with no covariates: "Forward" stepwise regression - Start with all covariates: "Backward" stepwise regression - Stepwise procedure proceeds by adding or removing covariates from the model base on the corresponding partial $t$ or $Z$ test - Must pre-specify a "P to enter" and "P to remove" - To avoid infinite loops, P to enter must be less than P to remove - E.g. Add a variable to the model if $p < 0.05$, but only remove a variable from the model if $p > 0.10$ - Repeat the process until you arrive at a final model ### ROC Curves - Receiver operating characteristic (ROC) curves plot the sensitivity against the false positive rate (e.g. 1 - specificity) - Ideal tests will have both high sensitivity and high specificity (low false positives) - Graphically depicted as points in the upper left portion of the plot - 1:1 line represents a test that is no better than the flip of a coin - Test usually involves the classification of some binary outcome by a continuous predictor (or set of continuous predictors) - When the continuous predictor is above some point $c$, the test is said to be positive - ROC curves plots the sensitivity and false positive rate for all possible values of $c$ - Major drawbacks to ROC analysis - Tempts analyst to find a cutoff point ($c$) when none really exists - Better to treat your covariate or linear prediction as a continuous variable ### Example 1: Age or height to predict smoking - Question: Is age or height a better predictor of smoking status? - Will compare the ROC curves - Often done use the area under the curve (AUC) - Model with higher AUC is better - A null model (not predictive of outcome) will have area of 0.50 - Maximum AUC is 1.0 - Stata - Fit the logistic regression model - `lroc` creates the ROC curve - `predict` to save the fitted curves - `roccomp` to compare the curves  ``` stata . logit smoker height Logistic regression Number of obs = 654 LR chi2(1) = 58.27 Prob > chi2 = 0.0000 Log likelihood = -182.58748 Pseudo R2 = 0.1376 ------------------------------------------------------------------------------ smoker | Coef. Std. Err. z P>|z| [95% Conf. Interval] -------------+---------------------------------------------------------------- height | .2067181 .0307986 6.71 0.000 .1463539 .2670824 _cons | -15.32622 2.017127 -7.60 0.000 -19.27972 -11.37273 ------------------------------------------------------------------------------ . lroc, nograph Logistic model for smoker number of observations = 654 area under ROC curve = 0.7882 . predict xb1, xb . . logit smoker age Logistic regression Number of obs = 654 LR chi2(1) = 104.88 Prob > chi2 = 0.0000 Log likelihood = -159.28248 Pseudo R2 = 0.2477 ------------------------------------------------------------------------------ smoker | Coef. Std. Err. z P>|z| [95% Conf. Interval] -------------+---------------------------------------------------------------- age | .4836394 .0551278 8.77 0.000 .375591 .5916878 _cons | -7.743905 .7089008 -10.92 0.000 -9.133325 -6.354485 ------------------------------------------------------------------------------ . lroc, nograph Logistic model for smoker number of observations = 654 area under ROC curve = 0.8677 . predict xb2, xb . roccomp smoker xb1 xb2, graph summary ROC -Asymptotic Normal-- Obs Area Std. Err. [95% Conf. Interval] ------------------------------------------------------------------------- xb1 654 0.7882 0.0225 0.74414 0.83227 xb2 654 0.8677 0.0185 0.83152 0.90393 ------------------------------------------------------------------------- Ho: area(xb1) = area(xb2) chi2(1) = 11.20 Prob>chi2 = 0.0008 ``` ![image](./figures/roc1.png){height="4in"} - Age has a significantly larger AUC than Height ($p < 0.001$) - For any given false positive rate, the sensitivity is higher for age - Predicted value positive would also always be higher ### Example 2: Multiple predictors of smoking - Will consider age, height, sex, and fev as predictors of smoking - Fit a multivariable logistic regression model using these covariates in a training sample - Training sample will contain 60% of the observation in the current study - Develop a model on the training sample, see how well it fits in the validation sample (the remaining 40% of the data) - Consider a rule that predicts a subject will smoke if their predicted probability is greater than 0.5 - Could choose other cutoffs than 0.5 - Other cutoffs will be represented on the ROC curves - Sensitivity, specificity will vary by the cutoff chosen  ``` stata . . xi: logit smoker age height i.sex fev if training < .6 i.sex _Isex_1-2 (_Isex_1 for sex==female omitted) Logistic regression Number of obs = 385 LR chi2(4) = 80.02 Prob > chi2 = 0.0000 Log likelihood = -70.223945 Pseudo R2 = 0.3629 ------------------------------------------------------------------------------ smoker | Coef. Std. Err. z P>|z| [95% Conf. Interval] -------------+---------------------------------------------------------------- age | .6611145 .1276124 5.18 0.000 .4109988 .9112302 height | .1834778 .0960597 1.91 0.056 -.0047957 .3717514 _Isex_2 | -.7128769 .5392144 -1.32 0.186 -1.769718 .3439639 fev | -1.123659 .4514655 -2.49 0.013 -2.008515 -.2388024 _cons | -18.18847 5.100367 -3.57 0.000 -28.18501 -8.191936 ------------------------------------------------------------------------------ . predict pfit (option pr assumed; Pr(smoker)) . . gen pfit50=pfit . recode pfit50 0/0.5=0 0.5/1=1 (pfit50: 654 changes made) . . tabulate smoker pfit50 if training > .6, row col | pfit50 smoker | 0 1 | Total -----------+----------------------+---------- 0 | 226 10 | 236 | 95.76 4.24 | 100.00 | 90.04 55.56 | 87.73 -----------+----------------------+---------- 1 | 25 8 | 33 | 75.76 24.24 | 100.00 | 9.96 44.44 | 12.27 -----------+----------------------+---------- Total | 251 18 | 269 | 93.31 6.69 | 100.00 | 100.00 100.00 | 100.00 ``` - Using a cutoff of 0.50 - Sensitivity: $8/33 = 24.24$ - Specificity: $226/236 = 95.76$ - PVP: $8/18 = 44.44$ - PVN: $226/251 = 90.04$ - Thresholds other than 0.50 give different values for sensitivity, specificity, PVP, PVN - ROC curve displayed gives all possible thresholds ![image](./figures/roc2.png){height="4in"} ### Analysis of ROC curves in R - There are a number of add on packages that will conduct ROC analysis in R - `ROCR` is one popular package ### Multivariable prognostic models - Reference - Harrell FE Jr, Lee KL, Mark DB. Multivariable prognostic models: issues in developing models, evaluating assumptions and adequacy, and measuring and reducing errors. Statistics in Medicine. 15(4): 361-87, Feb 1996 - A "Tutorial is Biostatistics" (frequently appears in Statistics in Medicine) - From abstract of paper - "Multivariable regression models are powerful tools that are frequently used in clinical outcomes... however uncritical application of modeling techniques can result in models that poorly fit the dataset at hand, or, even more likely, inaccurately predict outcomes on new subjects." - "... predictive accuracy should be unbiasedly validated using bootstrapping or cross-validation before using predictions in new data series." - Common problem: Number of predictors being considered ($p$) is larger than the number of events ($m$) - Recommendation: Consider no more than $m/10$ potential predictors in a model - e.g. if event rate is $10\%$ and $n=200$ then $m=20$; only $2$ potential predictors - Step 1: Consider your dataset - Missing data (imputation?) - Interactions (scientific relevance?) - Transformation of predictors (scientific relevance?) - Step 2: Data Reduction - Reduce the number of predictors to a manageable amount - Utilize methods that do not consider the outcome ("unsupervised" learning) - If you do not use the outcome at this stage, your statistical inference is preserved - Correlations among predictors: Variable clustering, principle components analysis - Scientifically meaningful summary measures - Step 3: Fit the model and ... - Evaluate modeling assumptions: Linearity, additivity, distributional assumptions - Use backwards stepwise selection to find a simpler model - Harrell: Remove predictor if $\chi^2 > 2$ ($p > 0.16$) - Will use *all data* to fit model - Step 4: Evaluate model - Bootstrap cross-validation - Sample data with replacement - For each bootstrap sample, the evaluation of modeling assumptions and backwards selection will be performed (these steps use the outcome) - Summarize predictive accuracy using a statistic (C-index, Brier score) - Bootstrap cross-validation provides a nearly unbiased estimate of predictive accuracy (e.g. C-index, Brier score) while allowing the entire model to be used for model development - C-index: Area under the ROC curve. Index near 1 indicates higher accuracy. - Brier score: Average squared deviation between predicted probability of event and observed outcome. A lower score represents higher accuracy. #### Case Study using lrm() in R - Logistic regression model - Main effects: sex, cholesterol (splines), age (polynomial), and blood pressure (linear) - Interactions: sex with cholesterol - (5 predictors maximum)  ``` r > f <- lrm(y ~ sex*rcs(cholesterol)+pol(age,2)+blood.pressure, x=TRUE, y=TRUE) > f Logistic Regression Model lrm(formula = y ~ sex * rcs(cholesterol) + pol(age, 2) + blood.pressure, x = TRUE, y = TRUE) Model Likelihood Discrimination Rank Discrim. Ratio Test Indexes Indexes Obs 1000 LR chi2 84.78 R2 0.109 C 0.660 0 440 d.f. 12 g 0.704 Dxy 0.321 1 560 Pr(> chi2) <0.0001 gr 2.023 gamma 0.322 max |deriv| 2e-04 gp 0.160 tau-a 0.158 Brier 0.226 Coef S.E. Wald Z Pr(>|Z|) Intercept -2.8990 2.7445 -1.06 0.2908 sex=male -5.7526 3.6005 -1.60 0.1101 cholesterol -0.0027 0.0148 -0.18 0.8552 cholesterol' -0.0438 0.0793 -0.55 0.5804 cholesterol'' 0.1808 0.4591 0.39 0.6937 cholesterol''' -0.1266 0.7850 -0.16 0.8719 age 0.1253 0.0475 2.64 0.0083 age^2 -0.0009 0.0005 -1.88 0.0605 blood.pressure -0.0018 0.0045 -0.40 0.6901 sex=male * cholesterol 0.0313 0.0218 1.43 0.1515 sex=male * cholesterol' 0.0190 0.1146 0.17 0.8683 sex=male * cholesterol'' -0.1227 0.6718 -0.18 0.8551 sex=male * cholesterol''' 0.1315 1.1752 0.11 0.9109 ``` - Validation... - Backwards stepwise regression - Different bootstrap sample will remove different covariates - Indicates which covariates were included for each sample - Estimates of discrimination indexes  ``` r > validate(f, B=150, bw=TRUE, rule="p", sls=.1, type="individual") Backwards Step-down - Original Model Deleted Chi-Sq d.f. P Residual d.f. P AIC blood.pressure 0.16 1 0.6901 0.16 1 0.6901 -1.84 cholesterol 7.35 4 0.1184 7.51 5 0.1853 -2.49 Approximate Estimates after Deleting Factors Coef S.E. Wald Z P Intercept -3.9763208 1.1849888 -3.355577 0.000792 sex=male -4.9024437 2.6546474 -1.846740 0.064785 age 0.1246156 0.0473845 2.629884 0.008541 age^2 -0.0008688 0.0004677 -1.857457 0.063246 sex=male * cholesterol 0.0286721 0.0160278 1.788897 0.073631 sex=male * cholesterol' -0.0252835 0.0827977 -0.305365 0.760088 sex=male * cholesterol'' 0.0634986 0.4907718 0.129385 0.897053 sex=male * cholesterol''' -0.0071007 0.8750440 -0.008115 0.993526 Factors in Final Model [1] sex age sex * cholesterol index.orig training test optimism index.corrected n Dxy 0.3082 0.3301 0.2986 0.0316 0.2766 150 R2 0.0995 0.1184 0.0946 0.0238 0.0757 150 Intercept 0.0000 0.0000 0.0263 -0.0263 0.0263 150 Slope 1.0000 1.0000 0.8879 0.1121 0.8879 150 Emax 0.0000 0.0000 0.0308 0.0308 0.0308 150 D 0.0762 0.0917 0.0722 0.0195 0.0567 150 U -0.0020 -0.0020 0.0016 -0.0036 0.0016 150 Q 0.0782 0.0937 0.0706 0.0231 0.0551 150 B 0.2279 0.2244 0.2295 -0.0051 0.2330 150 g 0.6650 0.7374 0.6452 0.0922 0.5729 150 gp 0.1512 0.1651 0.1477 0.0173 0.1339 150 Factors Retained in Backwards Elimination sex cholesterol age blood.pressure sex * cholesterol * * * * * * * * * * * * * * * * * * * * * * * * * * * (output omitted; continues for each bootstrap sample) Frequencies of Numbers of Factors Retained 2 3 4 5 18 74 55 3 ```
